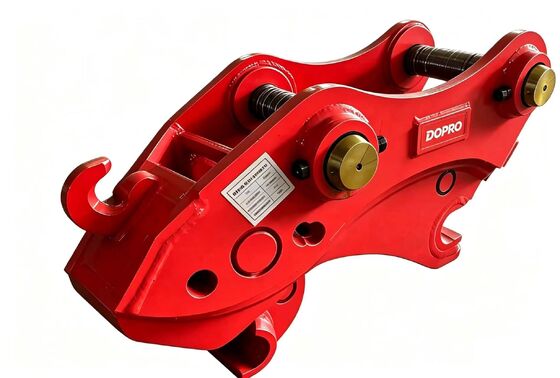

QUICK HITCH COUPLER for quick coupler

QUICK HITCH COUPLER for quick coupler

MOQ: 1
Price: 100
Standard Packaging: WOODEN PALLET WOODED BOX
Delivery Period: 5-10DAYS
Supply Capacity: 3000PCS
Detail Information
Place of Origin
CHINA
Brand Name
DOPRO
Certification
CE
Model Number
DPAQ
Warranty:
12 Months
Color:
Yellow,Customer Required,any Color,Black,White
Application:
Mining,Crawler Excavator,Construction,breaking Stone,etc
After-sales Service Provided:
Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service,Field Installation
Material:
42CrMo,Steel,20CrMo,NM360/400,40CrNiMo
Condition:
100%new,100% New,durable,long Life
Oem:
Yes,Avaliable
System:
Hydraulic-system,Hydraulic-Gas Power,Hydraulic-gas System
Oem/odm:
Available,Acceptable
Suitable Excavator:
1-50Ton
Product Description

DP Quick Coupler changing buckets or special attachments in a few minutes, usually without tools and without leaving the operator’s seat.


Special Features


• Strong & stable compaction

• Compaction ground and slope

• Waterworks and sewer constructions

• Reclamation works of the-gas-pipe and wire

• Wear-proof & one-body design

• Available for wide range of excavators with safetly


Model                        Unit       DPAQ250         DPAQ450      DPAQ500      DPAQ600     DPAQ700       DPAQ900    DPAQ1000
Length(G) mm 300~450 534~545 581~610 765 924~944 983~1050 1006~1173
Height(G) mm 246 307 310 388 492 574 558~610
Width(B) mm 175 258~263 270~280 353~436 449~483 543~568 606~663
PinsCenter Distance(D) mm 80~150 230~270 290~360 380~420 460~480 473~540 550~620
ArmWidth(A) mm 80~140 155~170 180~200 232~315 306~340 375~411 416~469
Retractable Distance ofoilCylinder mm 170~206 205~275 340~450 340~486 256~390 413~590 520~590
Vertical Pins Center Distance mm 159 195 195 220 275 300 360
Weight kg 45 70 80 180 350 550 750
Working Pressure kg/cm² 40~380 40~380 40~380 40~380 40~380 40~380 40~380
Necessary Flow L/min 10~20 10~20 10~20 10~20 10~20 10~20 10~20
Suitable Excavator ton 1~4 5~6 7~9 10~17 18~24 25~32 33~45
